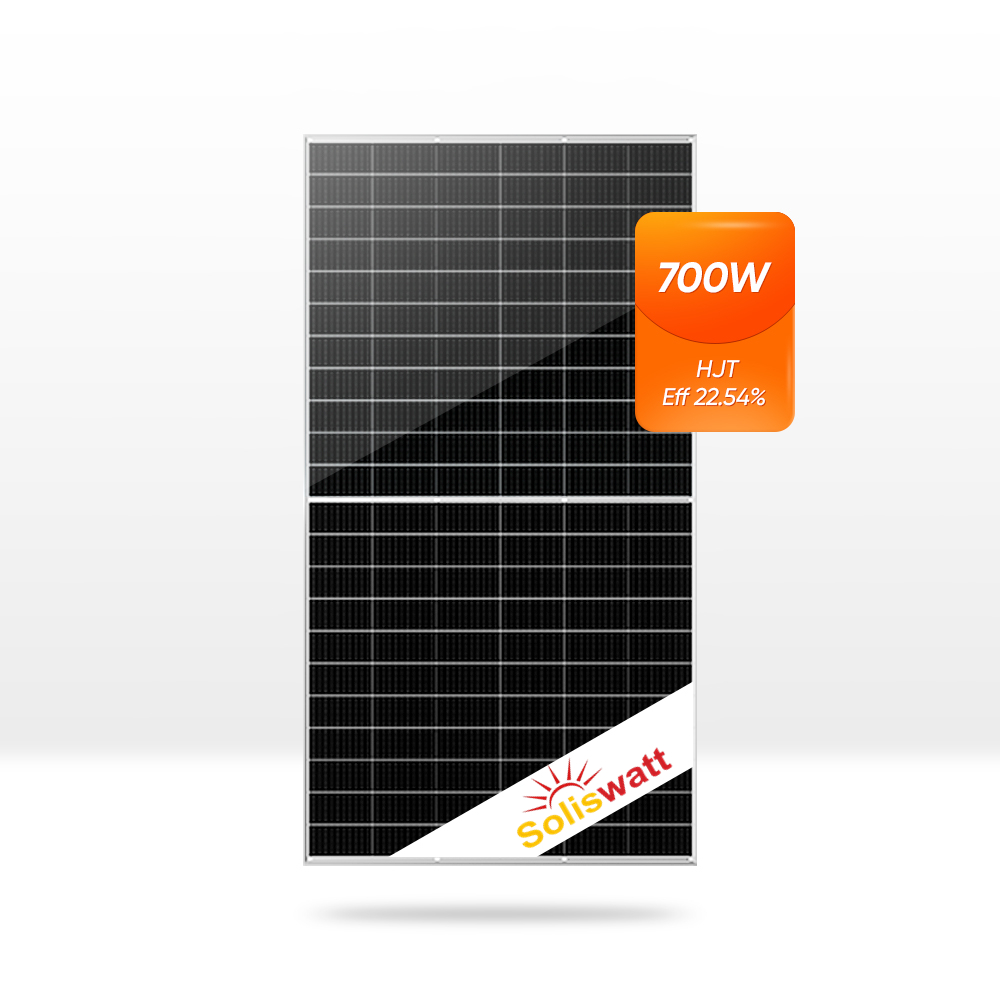

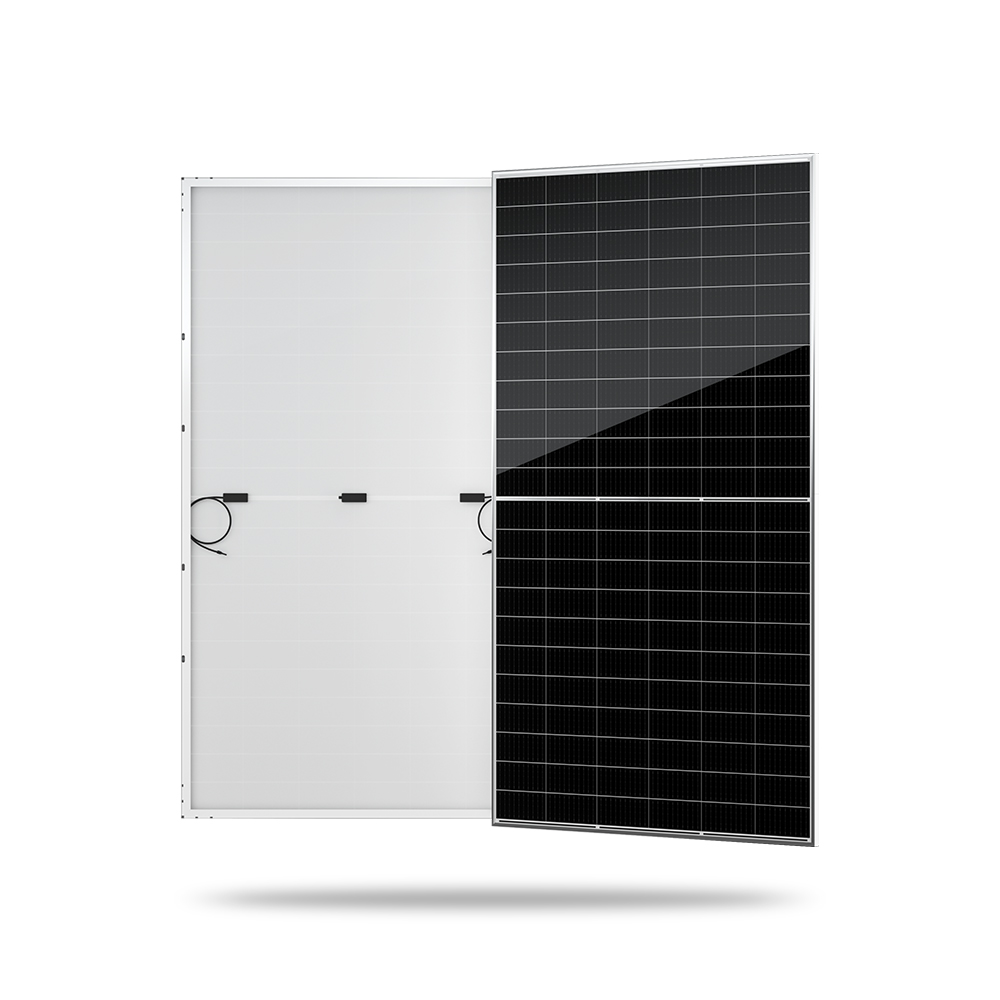

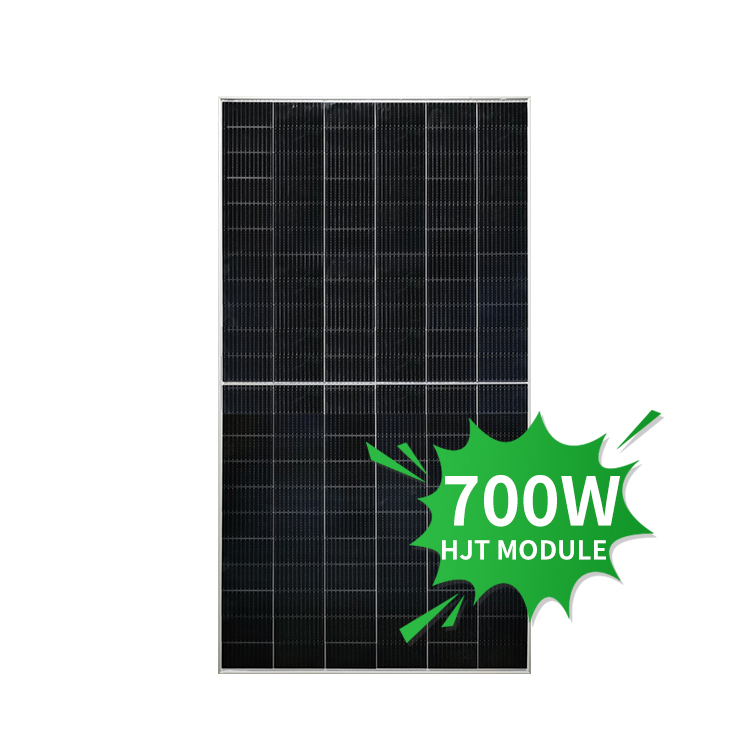

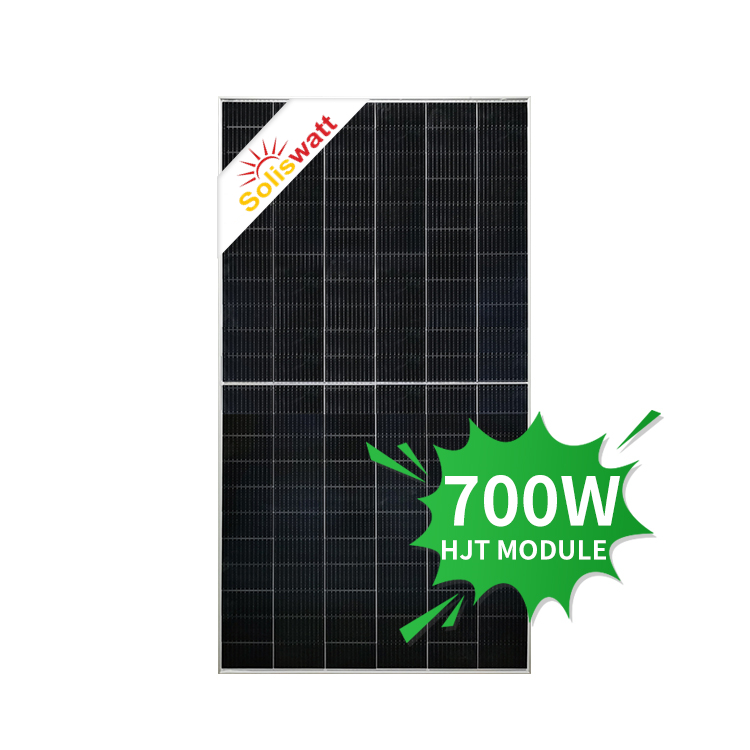

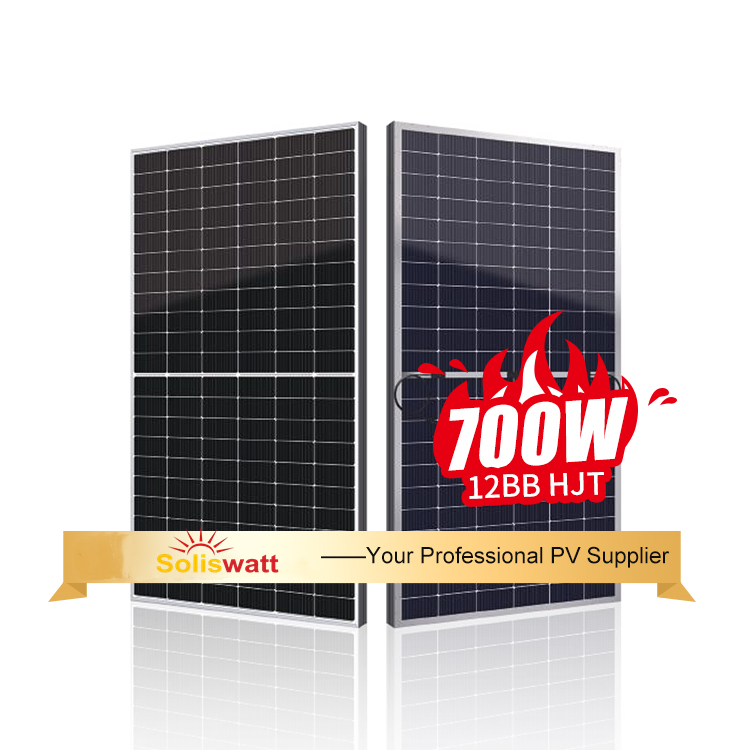

Solis 132cells 210mm 680w 700w Monocrystalline HJT Solar Panel

Solis 132cells 210mm 680w 700w Monocrystalline HJT Solar Panel

Category
Model Number:SP5-132HTD-700M
Power Range:680W-700W
Dimensions:2384*1303*35mm
Weight:38.7kg
Certificate:CE/TUV

Product Introduction



HJT Technical Advantage


1.The HJT cell is designed with conductive TCO surface and insulation-free layer, so there is no build-up surface layer charge.



2.Compared to PERC module, HJT features lower power temperature coefficient and higher output power.It is about 4.9% more efficient in power output than PERC module under 60℃ operation temperature.



3.The effective power generation time of HJT is 11.07% more than the effective power generation time of conventional cells.

ELECTRICAL PARAMETERS @ STC
Max. Power Output Pmax (W)
680
577
685
580
690
585
695
589
700    593
Front
Back
Front
Back
Front
Back
Front
Back
Front  Back
Power Tolerance
0~+3%
0~+3%
0~+3%
0~+3%
0~+3%
Max. Power Voltage Vmp (V)
42.08
42.68
42.32
42.82
42.55
43.05
42.77
43.27
43.00  43.50
Max. Power Current Imp (A)
16.16
13.53
16.19
13.55
16.22
13.58
16.25
13.60
16.28  13.63
Open Circuit Voltage Voc (V)
49.20
48.60
49.40
48.90
49.60
49.10
49.80
49.30
50.00  49.50
Short Circuit Current lsc (A)
17.18
14.38
17.20
14.40
17.22
14.42
17.24
14.43
17.26  14.45
Module Efficiency (%)
21.90
18.60
22.10
18.70
22.20
18.80
22.40
19.00
22.50  19.10
STC (Standard Test Condition)
 Irradiance 1000W/m2 , Cell Temperature 25O C, Air Mass 1.5
Inegrated Power @ STC (Refrence to 690W front)
Power Gains
5%
10%
15%
20%
25%
Max. Power Output Pmax (W)
725
759
792
826
861
Max. Power Voltage Vmp (V)
42.55
42.55
42.45
42.45
42.45
Max. Power Current Imp (A)
17.03
17.84
18.65
19.46
20.28
Open Circuit Voltage Voc (V)
49.60
49.60
49.70
49.70
49.70
Short Circuit Current lsc (A)
18.08
18.94
19.80
20.66
21.53

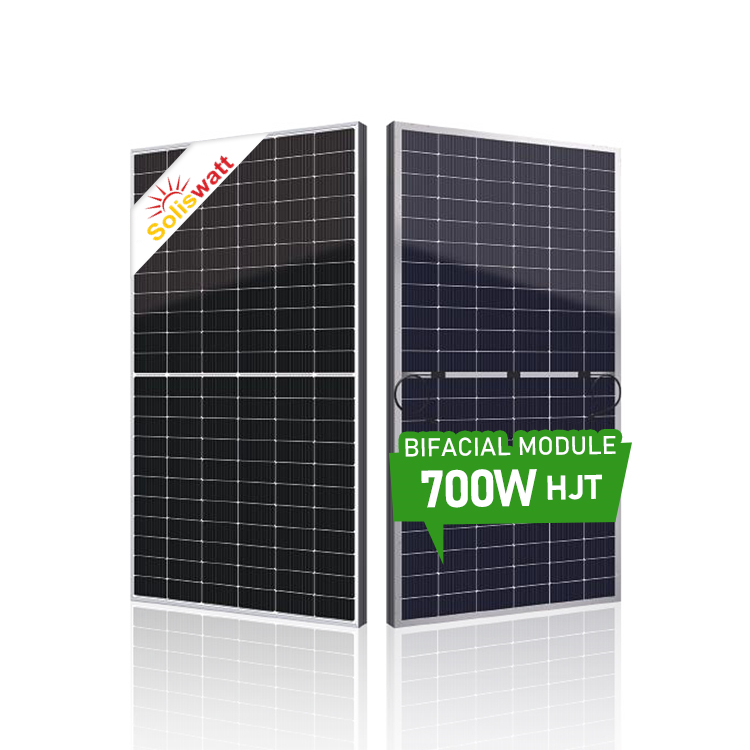

HJT is considered one of the top cell technologies with highest bifaciality. Higher bifaciality allows more energy yield on the back.Generally, it enables 5%-30% energy gain on the back, depending on the factors such as ground reflection, region type etc.

HJT modules adopt the production technology of low-temperature ribbon and low temperature flux, bring much lower damage for the cells, granting reliability and performance comparable to that of PERC.

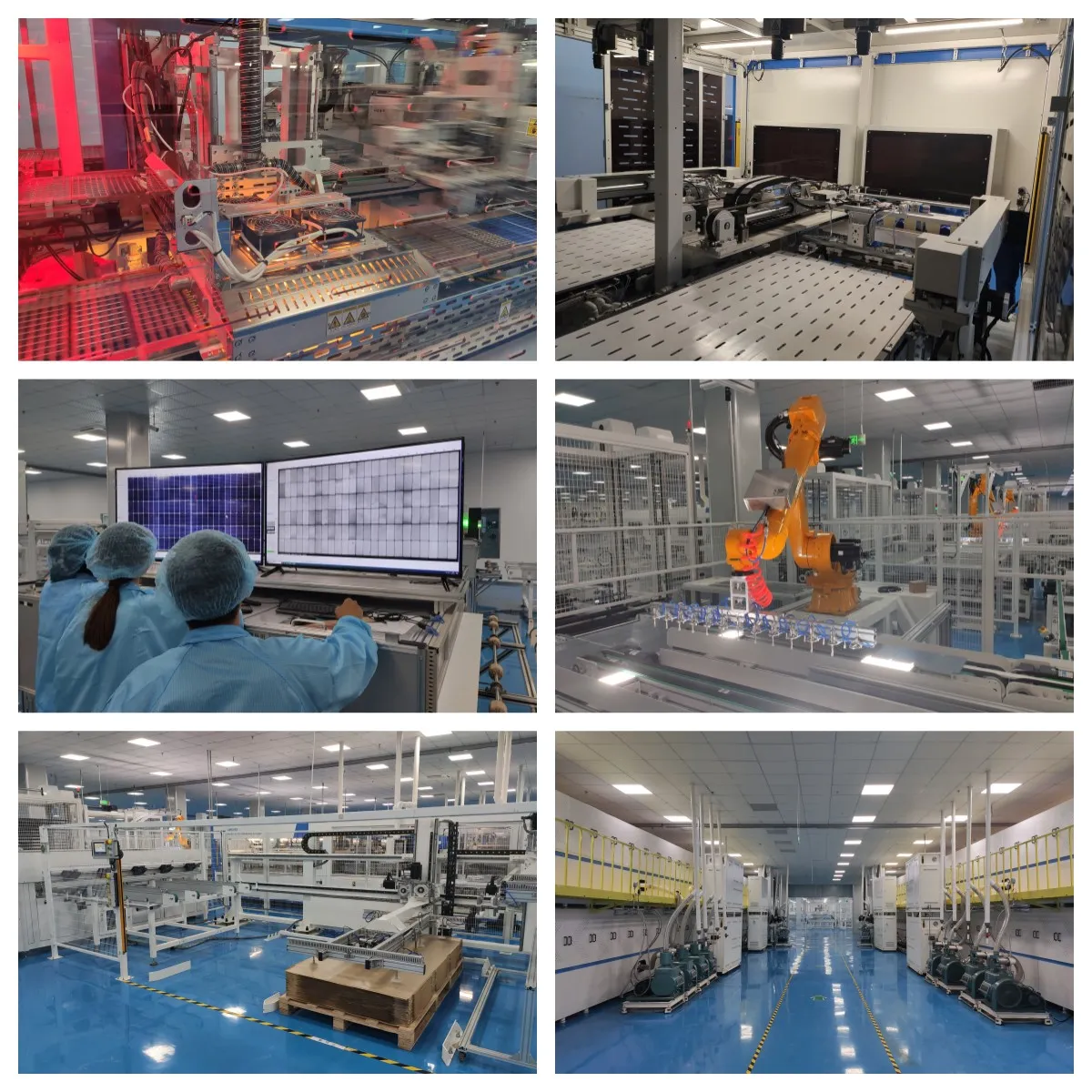

 Solar Panel Factory

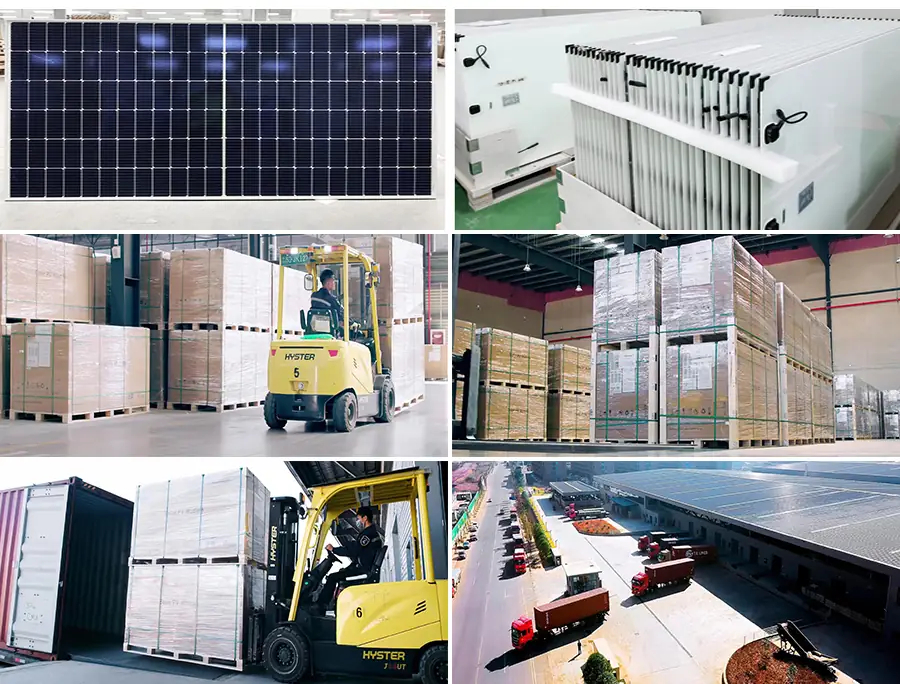

Packing & Delivery


Solis 120cells 210mm 580w 605w Monocrystalline Half Cell Solar Panel-packing.jpg

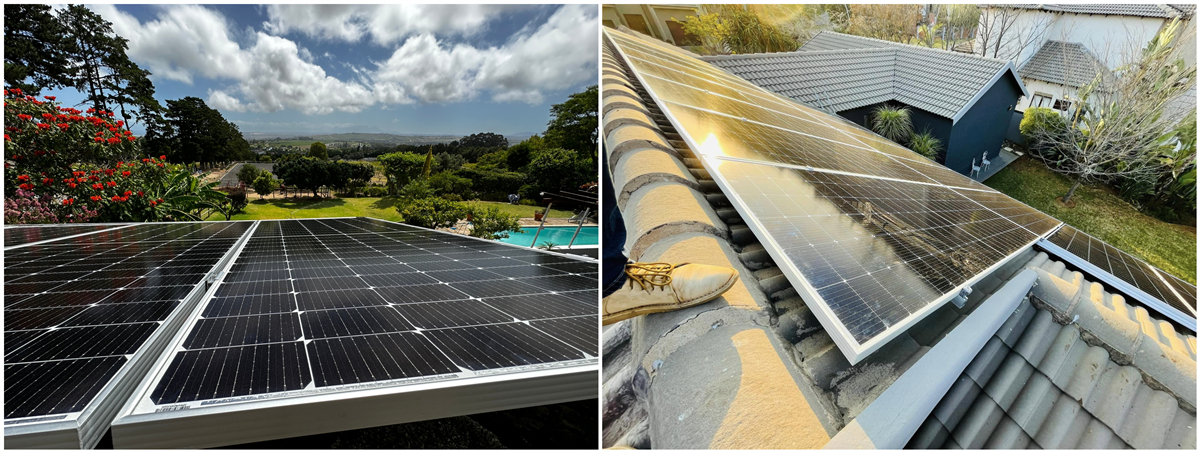

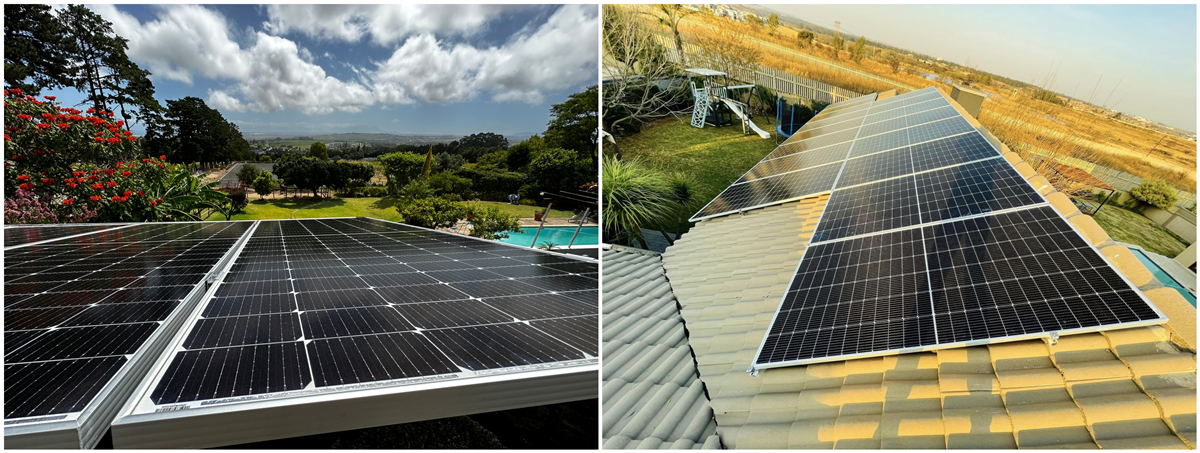

Project


Solis 120cells 210mm 580w 605w Monocrystalline Half Cell Solar Panel-project-1200.jpg

Solis-Solis 120cells 210mm 580w 605w Monocrystalline Half Cell Solar Panel-project.jpg
