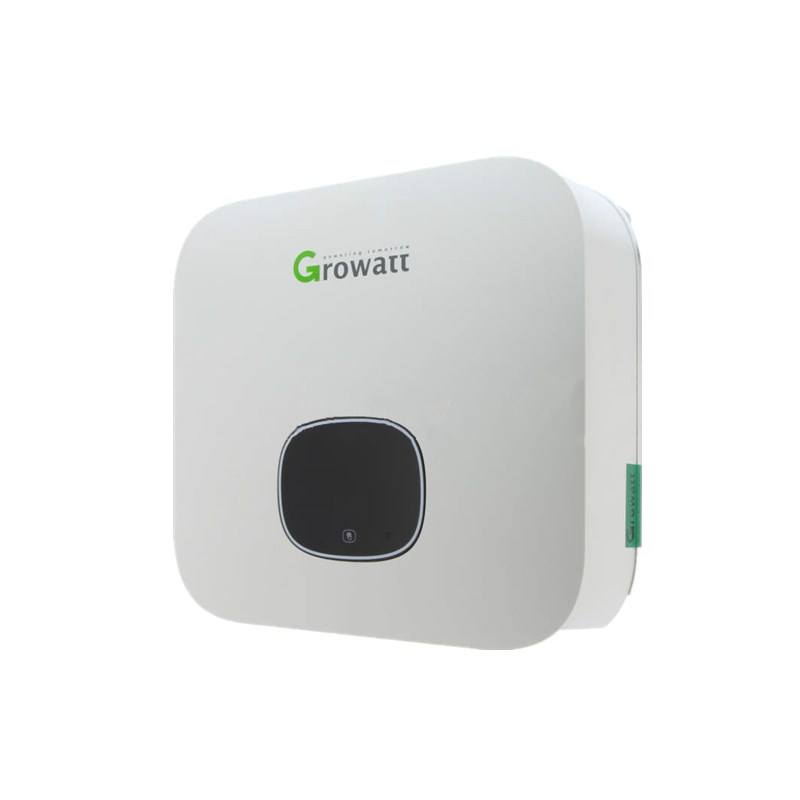

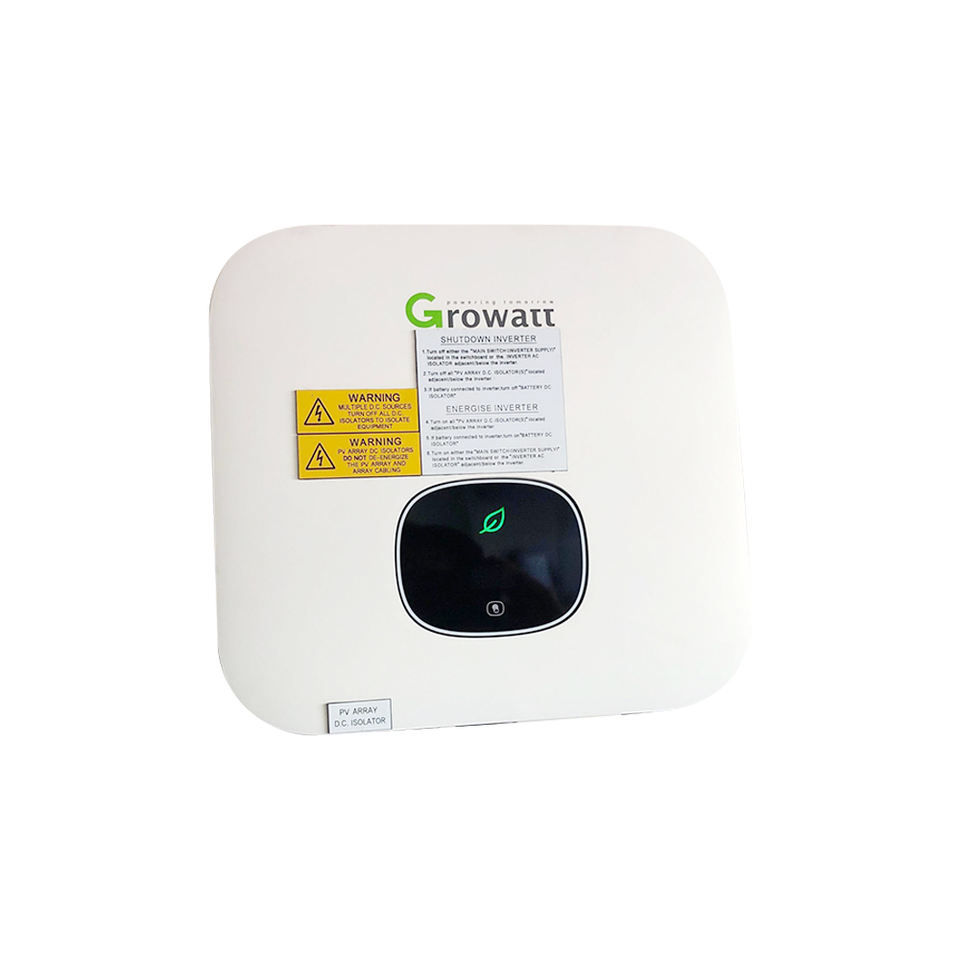

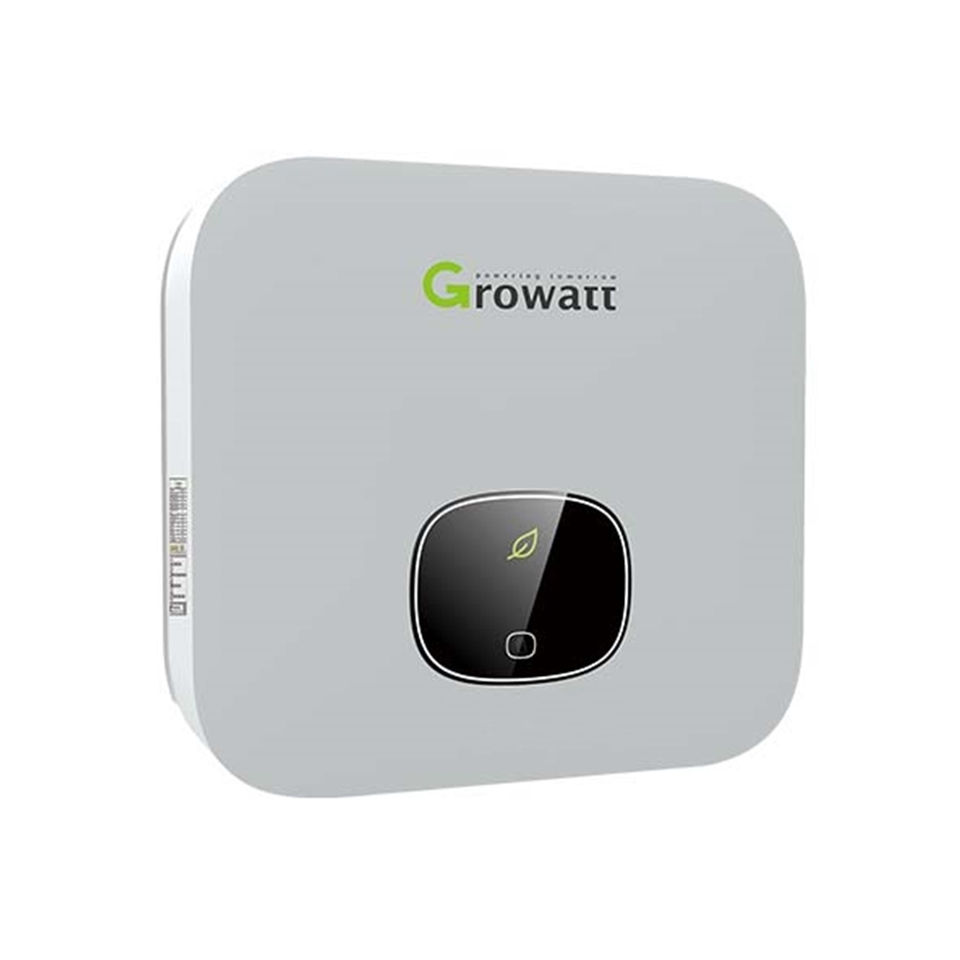

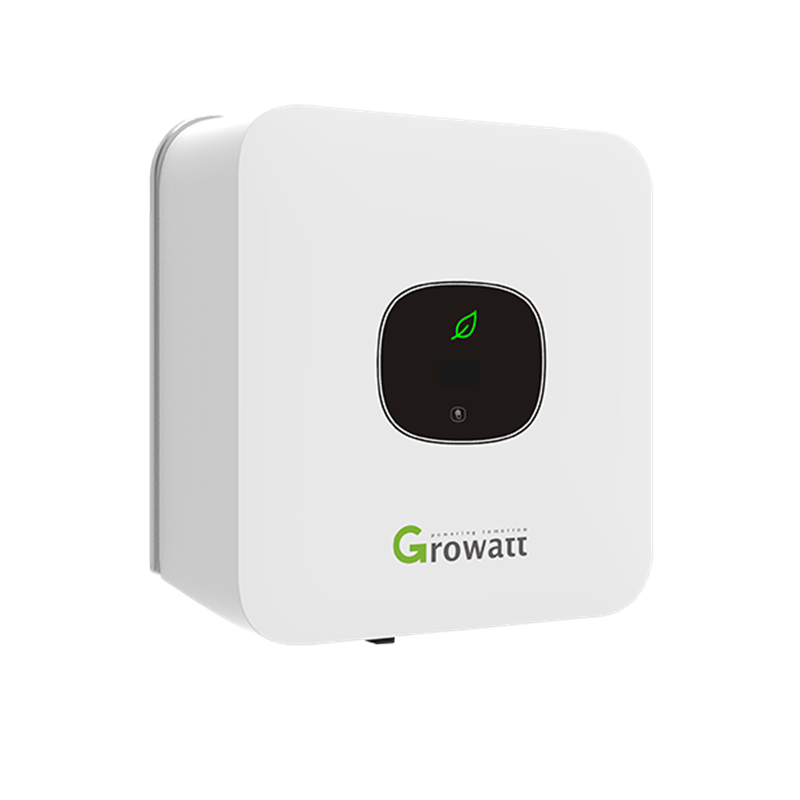

Growatt 2500w 6000w 220V Single Phase On Grid Solar Inverter

Growatt 2500w 6000w 220V Single Phase On Grid Solar Inverter

Growatt On Grid Solar Inverter Mid 2500w 6000w 220V Dual Mppt Trackers Growatt On Grid Inverter With USB

Model Number:MIN 4200TL-X
Output power:2.5-6kw
Output Voltage:230V
Size:355*419*158mm
Weight:15KG

5kw On Grid Inverter
*Double MPPT Tracker, MPPT tracking accuracy more than 99.5% *Max. Efficiency 97.9%, European Efficiency 97.4%
*Transformerless design and high power density, offer lighter and more convenient installation
*5 years standard warranty
*Power factor continuously adjustable
*Flexible communication connection, support RF, WiFi, Ethernet
*Comply with European, Australia, Asia-Pacific safety regulations

Datasheet
MIN3000TL-X
MIN4000TL-X
MIN5000TL-X
MIN5500TL-X
Max. recommended PV power
(for module STC)
4680W
5460W
5980W
6500W
Max. DC voltage
500V
500V
500V
500V
Start voltage
100V
100V
100V
100V
MPP work voltage range/
nominal voltage
80V-550V /360V
80V-550V /360V
80V-550V /360
80V-550V /360V
Full load dc voltage range
190V-500V
150V-500V
160V-500V
175V-500V
Max. input current of tracker A/tracker B
10A/10A
15A/15A
15A/15A
15A/15A
Max. input current per string of tracker A/tracker B
10A/10A
15A/15A
15A/15A
15A/15A
Number of independent MPP trackers / strings per MPP tracker
2/1
2/1
2/1
2/1
Output (AC)
Rated AC output power
3600W
4200W
4600w
5000w
Max. AC apparent power
3600VA
4200VA
4600VA
5000VA
Max. output current
16.3A
19A
20.9A
22.7A
AC nominal voltage; range
220V/230C/240V;180Vac-280Vac
220V/230C/240V;180Vac-280Vac
220V/230C/240V;180Vac-280Vac
220V/230C/240V;180Vac-280Vac
AC grid frequency; range
50Hz,60Hz / 5Hz
50Hz,60Hz / 5Hz
50Hz,60Hz / 5Hz
50Hz,60Hz / 5Hz
Displacement power factor,
configurable
0.8leading…
0.95lagging
0.8leading…
0.95lagging
0.8leading…
0.95lagging
0.8leading…
0.95lagging
THDi
<3%
<3%
<3%
<3%
AC connection
Single phase
Single phase
Single phase
Single phase
