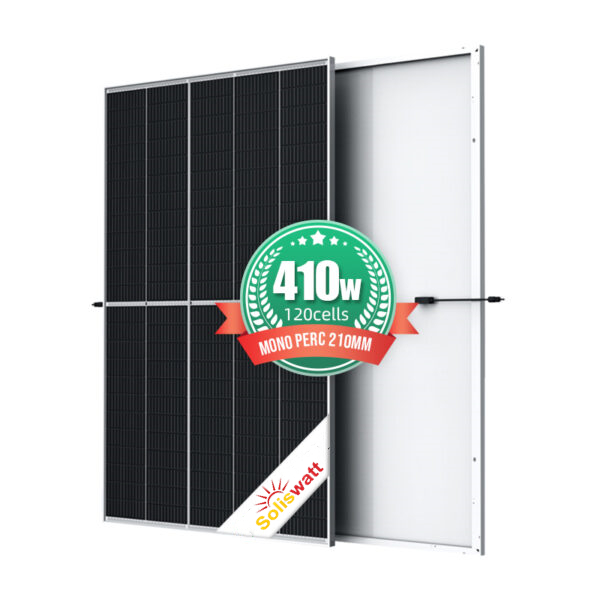

Solis 120cells 166mm 385w 400w 410w Monocrystalline PERC Solar Panel
| Model Number: | SP5-120HTH-410M |
| Power Range： | 385W-410W |
| Dimensions: | 1719*1140*35mm |
| Weight: | 22kg |
| Certificate: | CE/TUV |
Product Introduction
The shingled module increases the effective power generation area by more than 2% compared with conventional modules, and the number of cells that
can be packaged is increased to 66 pieces compared to the 60-piece version. Replacing the soldering strip with conductive adhesive avoids the shielding area of the soldering strip to reach 4%. The tightly superimposed solar cell is superimposed with the conductive effect of the conductive adhesive to reduce the internal resistance of the component by more than 3%, so that the power of the shingle module is increased by 10% above compared with the conventional module. Such shingle technology has also become one of the current mainstream packaging technologies for high-efficiency modules.
What is Shingled Technology

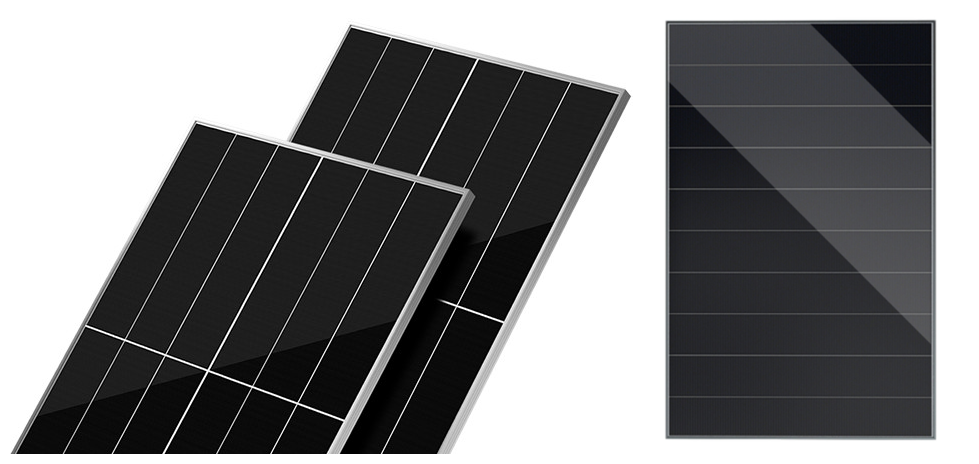

The Details of High Efficiency Shingled Solar Panel/Modules Mono PERC
 |  |
| By configuring the solar cells in shingles, the shingled PV modules can be wired in groups and configured in parallel which significantly reduces the losses of energy caused by shading. | Adopting seamless soldering technology, the shingled solar cells allow the gap between the solar cells to be eliminated, which greatly increases the number of solar cells per square meter. |
1. Higher Bifacial Efficiency
The HJT data show that the Bifacial efficiency rate is as high as 93-95%, while the Double side PERC rate is only 75%+. Taking into account the 10%-20% backside irradiation and the difference in the double-side rate of the cells, the output of HJT cells per watt is about 3%-6% higher than that of double-side PERC cells.
2. 50W increase compared with Perc of the same version
3. Full set of safety certification and regulation, meet certificate requirements in most of the countries.
 | ||
| Glass by XINYI,SG CNBM Anti-reflective glass | 21.23% Higher Efficiency Cell by Tier 1 Brand | Frame by Tentop(Black/Silver Optional) 120N Tensile Strength Frame |
 | ||
| Waterproof Labels Product by Waterproof Labels Soliswatt/OEM | Juction Boxes by TL, QC Solar Innovative Full-Glue-Filled IP68 Waterproofness | PV Connector by TL, QC SolarMC4 4mm Qualified cable |
Electrical Parameters | |||||
Module | SP5-120HTH-390M~SP5-120HTH-410M | ||||
Encapsulation | Class/Eva/Cell/Eva/Backsheet | ||||
Maximum Power Pmax(W) | 390 | 395 | 400 | 405 | 410 |
Maximum Power Voltage(Vmp/V) | 33.80 | 34.00 | 34.20 | 34.40 | 34.60 |
Maximum Power Current(Imp/A) | 11.54 | 11.62 | 11.70 | 11.77 | 11.85 |
Open Circuit Voltage-(Voc/V) | 40.80 | 41.00 | 41.20 | 41.40 | 41.60 |
Short Circuit Current(Isc/A) | 12.14 | 12.21 | 12.28 | 12.34 | 12.41 |
Module Effciency (%) | 20.30 | 20.50 | 20.80 | 21.10 | 21.32 |
Power Tolerance (W) | 0 ~ +5W | ||||
Temperature Coefficient of Isc(αIsc) | +0.04%/℃ | ||||
Temperature Coefficient of Voc (βVoc) | -0.25%/℃ | ||||
Temperature Coefficient of Pmax (γPmp) | -0.34%/℃ | ||||
STC | Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5 | ||||
