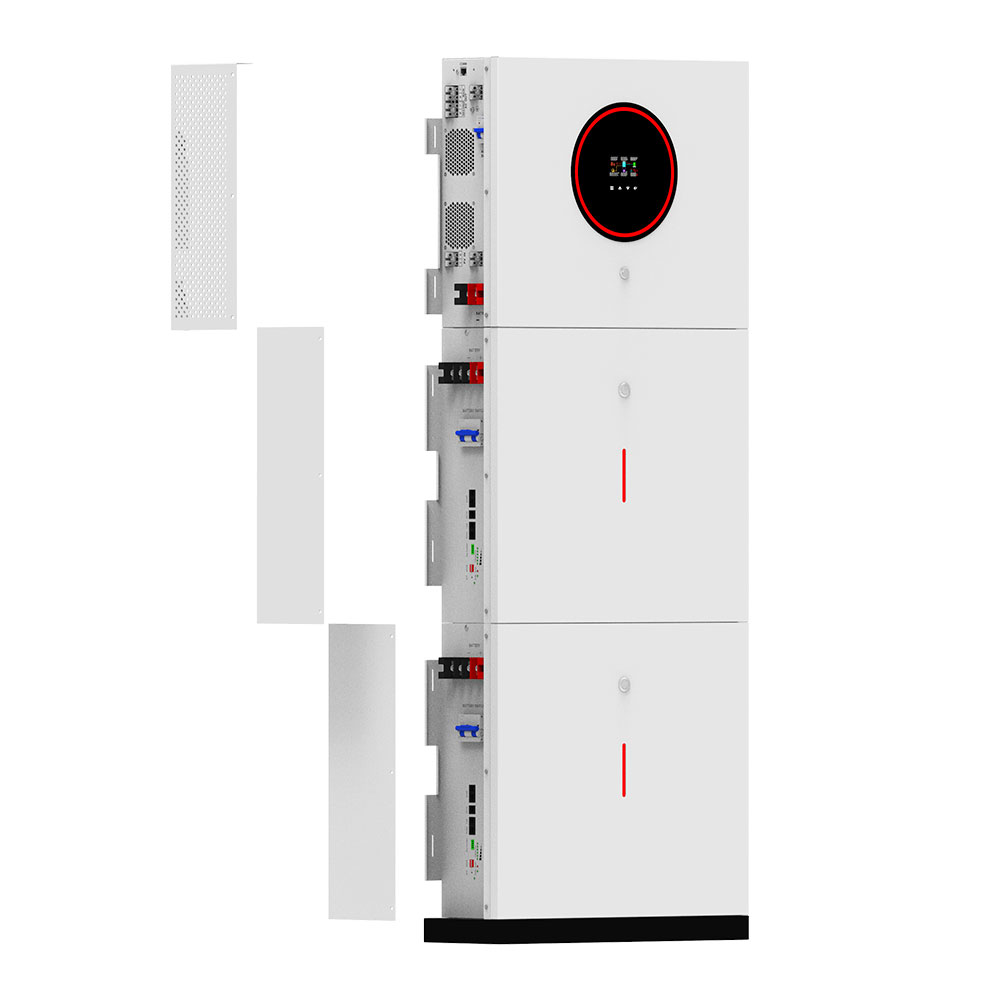

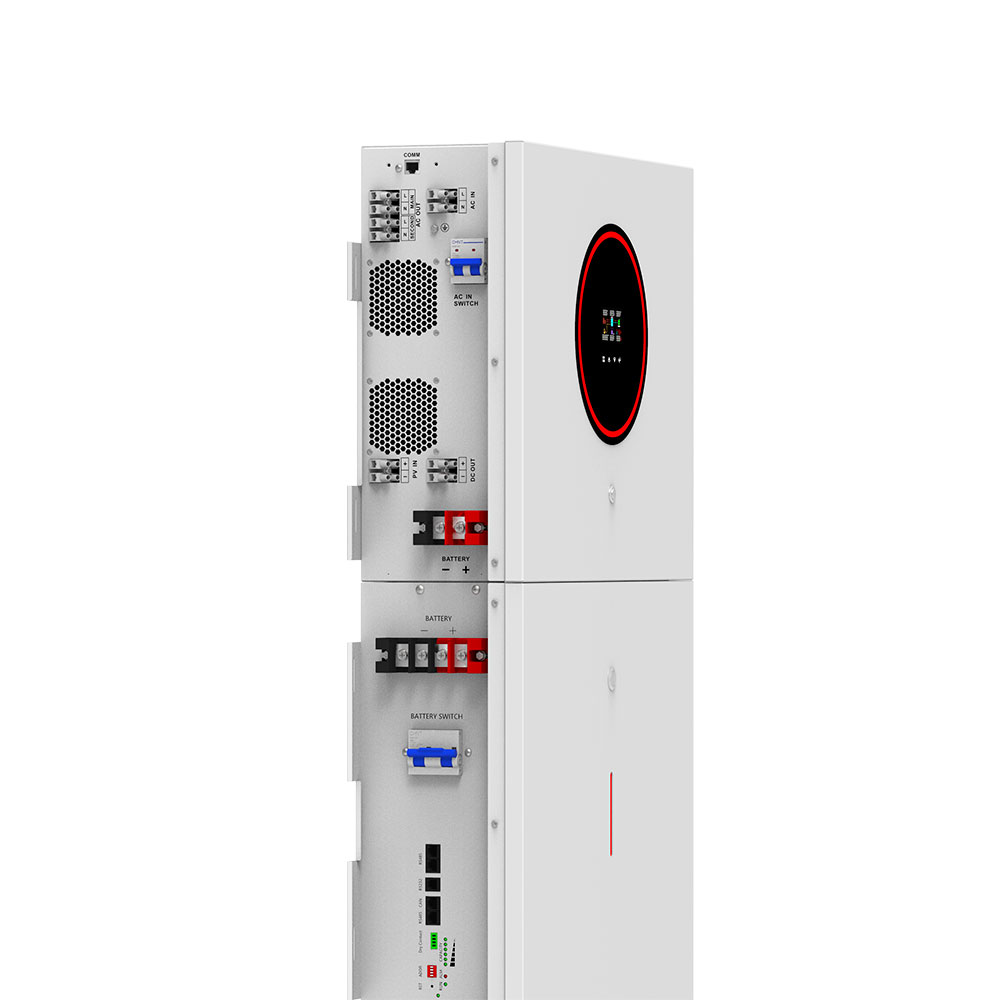

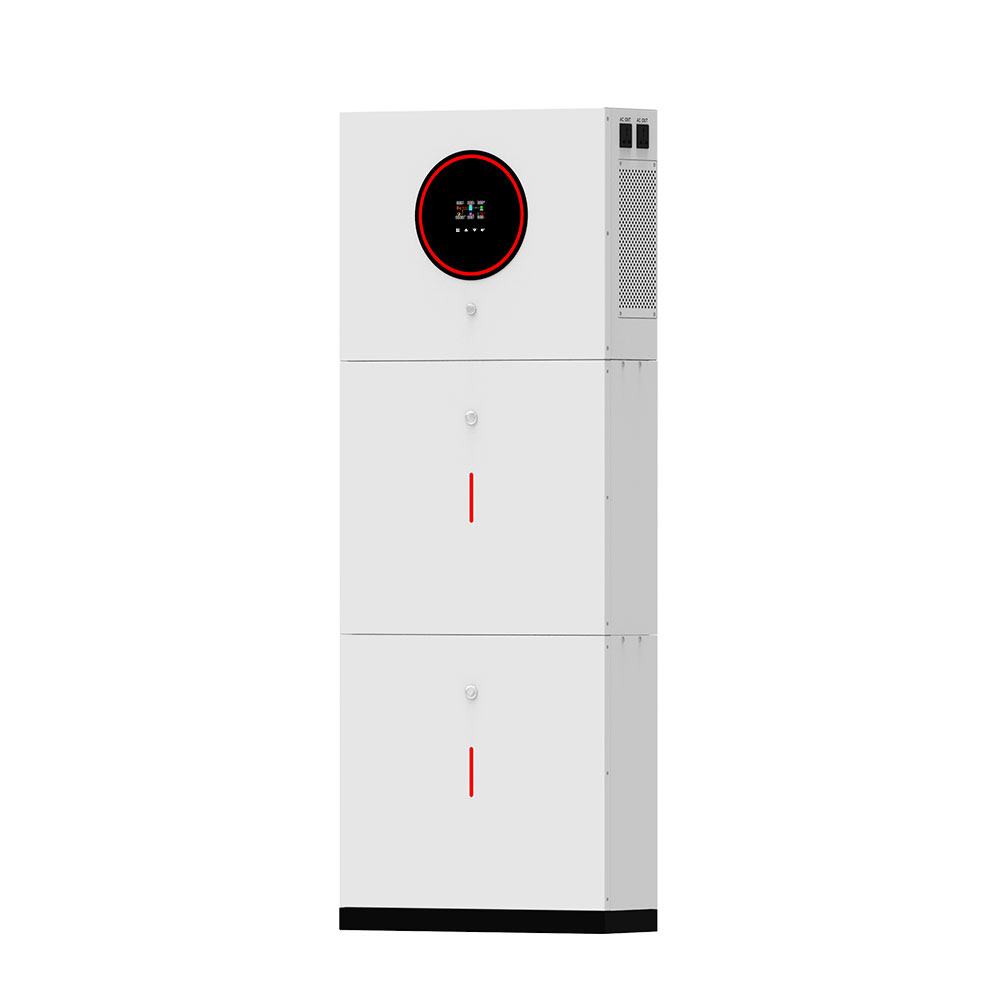

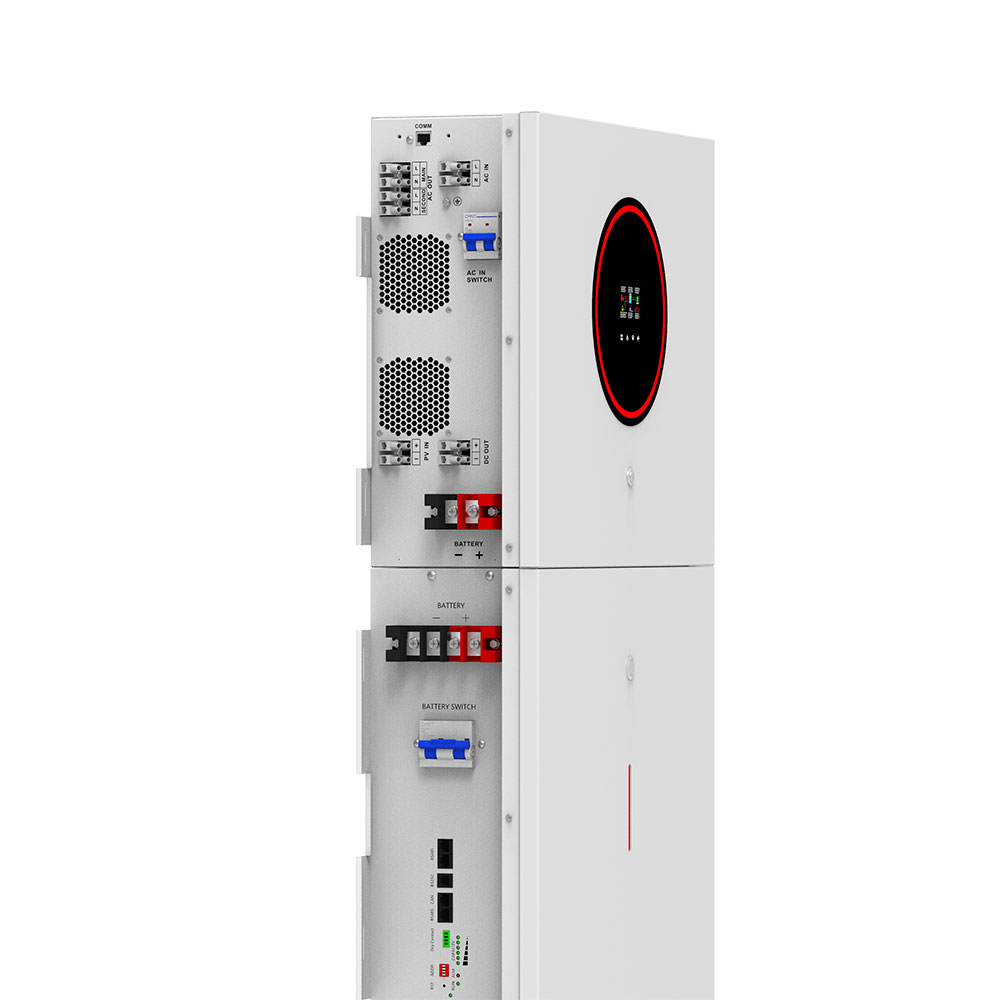

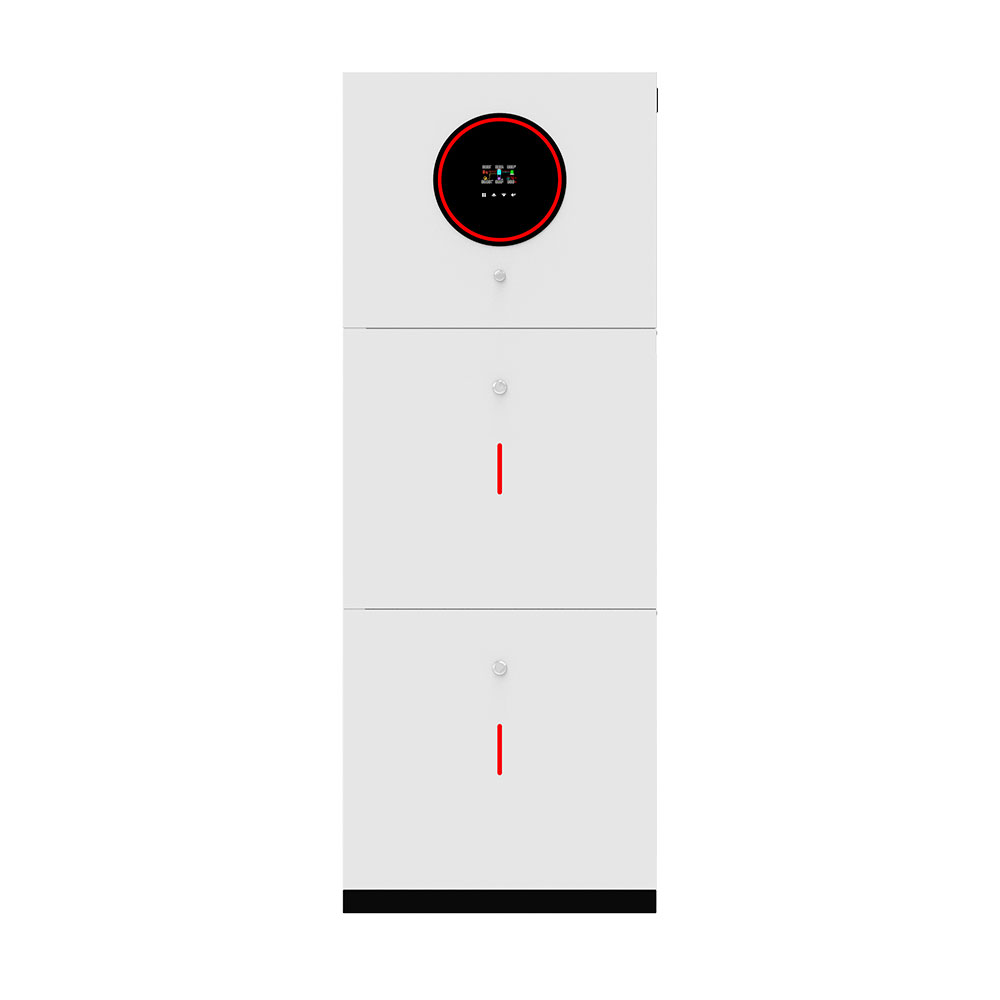

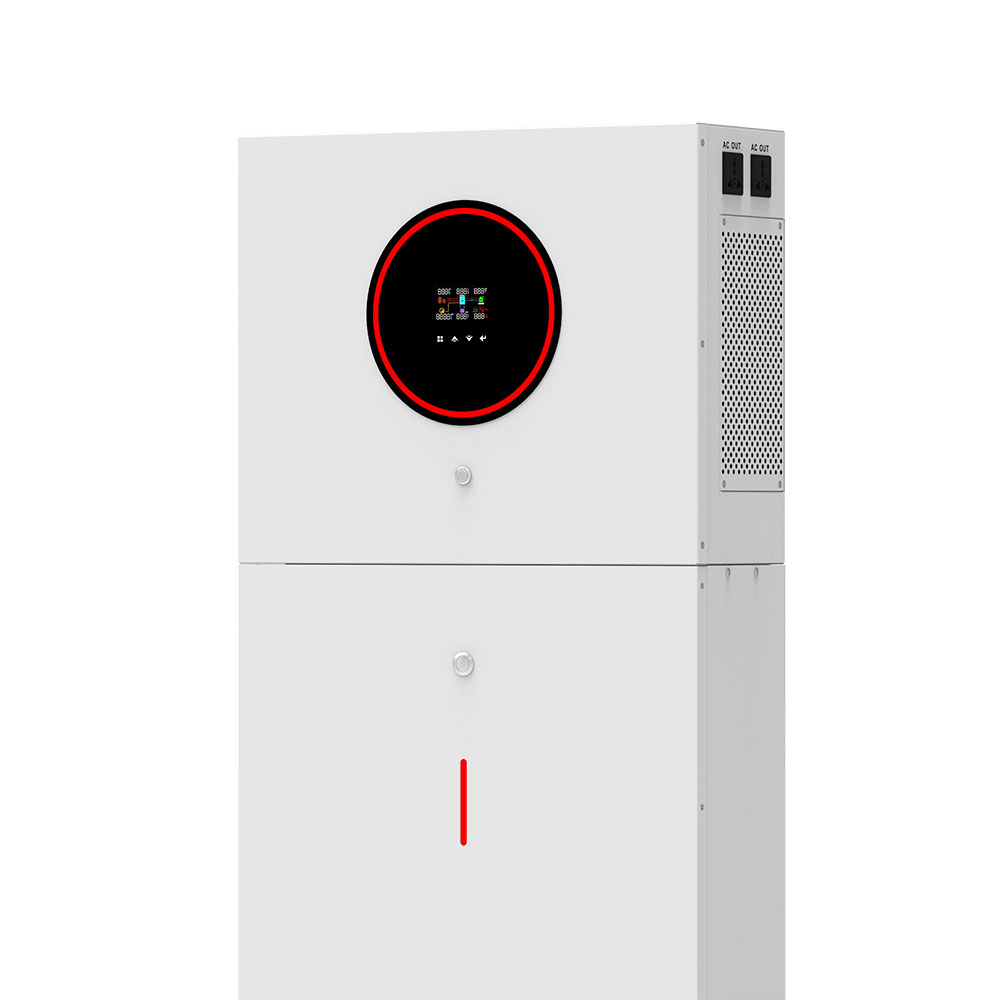

All In One ESS Master 4.2KW 6.2KW 10.2KW 4.2/6.2/10.2kW 5-50kWh
All In One ESS Master 4.2KW 6.2KW 10.2KW 4.2/6.2/10.2kW 5-50kWh
Features
Pure sine wave solar inverter(on/off Grid)
Output power factor 1.0
WIFI&GPRS available for IOS and Android
Inverter can run without battery
One-key restoration to factory Settings
Built-in Lithium battery automatic activation
Built-in 120A MPPT Solar charge:max 6200W(for 3.6KW),max 6500W (for 6.2KW)
High PV input voltage range(60~500VDC)
Built-in anti-dust kit for harsh environment
Smart battery charge design to optimize battery life
Dual output
| INVERTER | ||
| MODEL | ESS-3.6KW PLIS | ESS-6.2KW FLIS |
| Phase | 1-phase | |
| Maximum PV Input Power | 6200W | 6500W |
| Rated Output Power | 3600W/3600VA | 6200W/6200VA |
| Maximum Solar Charging Current | 120A | |
| GRID-TIE OPERATION | ||
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| Start-up Voltage /Initial Feeding Voltage | 60VDC/90VDC | |
| MPPT Voltage Range | 60~450VDC | |
| Maximum Input Current | 1/18A | 1/22A |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Voltage Range | 195.5~253VAC | |
| Nominal Output Current | 15.7A | 27.0A |
| Power Factor | >0.99 | |
| EFFICIENY Max. Conversion Effdiency (DC/AC) | 98% | |
| TWO LOAD OLTPUT POWER | ||
| Full Load | 3600W | 6200W |
| Maxium Main Load | 3600W | 6200W |
| Maxium Second Load (battery mode) | 1200W | 2067W |
| Maxium Load Cut 0 fVoltage | 26VDC | 52VDC |
| Maxium Load Return Voltage | 27VDC | 54VDC |
| 0FF-GRID OPERATION | ||
| AC INPUT | ||
| AC Start-up Voltage /Auto Restart Voltage PV INPUT(DC) | 120-140VAC/180VAC | |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |
| Frequency Range | 49~51 Hz | |
| Maximum Input Current | 1/18A | 1/22A |
| PV IN PUT (DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| MPPT Voltage Range | 60~450VDC | |
| Maximum Input Current | 1/18A | 1/22A |
| BATTERY MODE OUTRUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Waveform | Pure sine wave | |
| Efficiency(DC to AC) | 94% | |
| BATTERY &CHARGER | ||
| Nominal DC Voltage | 24VDC | 48VDC |
| Maximum Solar Charging Current | 120A | 120A |
| Maximum AC Charging Current | 100A | 100A |
| Maximum Solar+AC Charging Current | 120A | 120A |
| HYBRID OPERATION | ||
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| Start-up Voltage /Initial Feeding Voltage | 90VDC/120VDC | |
| MPPT Voltage Range | 60～450VDC | |
| Maximum Input Current | 1/18A | 1/22A |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Voltage Range | 195.5~253VAC | |
| Nominal Output Current | 15.7A | 27.0A |
| AC INPUT | ||
| AC Start-up Voltage /Auto Restart Voltage | 120-140VAC/180VA | |
| Acceptable Input Voltage Range | 90-280VAC or 170-280NAC | |
| Maximum AC Input Current | 30A | 40A |
| Maximum AC Charging Current | 100A | |
| GENERAL | ||
| PHYSICAL | ||
| Dimension,D x Wx H(mm) | 420*350*110 | |
| Carton Dimension,D X W XH(mm) | 500*410*190 | |
| Net Weight(kgs) | 18.5 | 19.5 |
| Gross Weight (kgs) | 20.5 | 21.5 |
| INTERACE | ||
| Communication Port | RS232/WIFI/GPRS/LITHIUM BATTERY | |
| ENVIRONMENT | ||
| Humidity | 5%to 95%Relative Humidity(Non~condensing) | |
| Operating Temperature | -10°℃~50 ℃ | |
| STANDARD | ||
| Compliance Safety | CE | |
